Hydradrive Type Hd-130 Cv-Drive Shaft System Set, With Thrust Bearing, Cv-Shaft And Adapter Flange

Name: Hydradrive Type Hd-130 Cv-Drive Shaft System Set, With Thrust Bearing, Cv-Shaft And Adapter Flange
Brand: Hydradrive
SKU: 9099520
Price: 3343.00 EUR
Availability: OutOfStock

Article number 9099520

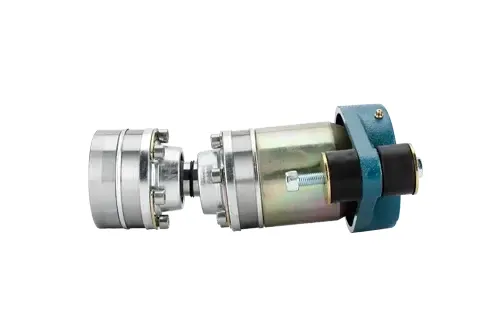

Hydradrive Type Hd-130 Cv-Drive Shaft System Set, With Thrust Bearing, Cv-Shaft And Adapter Flange - 9099520 3 - 9099520

Hydradrive Type Hd-130 Cv-Drive Shaft System Set, With Thrust Bearing, Cv-Shaft And Adapter Flange - 9099520 1 - 9099520

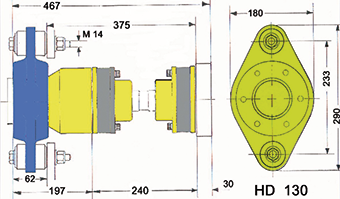

Hydradrive Type Hd-130 Cv-Drive Shaft System Set, With Thrust Bearing, Cv-Shaft And Adapter Flange - 9099520 2 - 9099520

This package contains		Stock	Amount
	Hydradrive Adapter 5,75", Centre Ø76,2mm, Pitch Ø120,6mm, 6x Ø16,0mm, For Model Hd-130 9099759		1

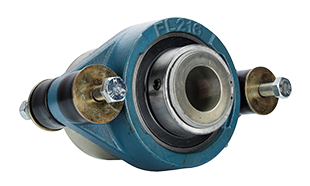

	Hydradrive Self-Aligning Thrust Bearing complete set, Ø50mm For Model HD-130 10000049		1

Stock 0

€ 3.343,00

Price (ex VAT)

Min. sales quantity: 1
Sales per: 1

Description

Hydradrive model HD-130 CV-shaft Set c/w thrust bearing + gearbox adapter *

Files

Drawings

pdf-allpa-aflex-montage instruction-type HD

Properties

General

Articlenumber

9099520

Inboard

Suitable for engine powers	up ± 250pk
Max. propeller thrust	25000N
Max. shaft torque	1800Nm
Max. shaft rpm	4.000 rpm
Length CV-shaft	240 ± 45mm
Propeller shaft diameters	40, 45, 50, 55 and 60mm
Full planing vessels	up to 320hp
