Hydradrive Type Hd-115l Cv-Drive Shaft System Set, With Thrust Bearing, Cv-Shaft And Adapter Flange

Name: Hydradrive Type Hd-115l Cv-Drive Shaft System Set, With Thrust Bearing, Cv-Shaft And Adapter Flange
Brand: Hydradrive
SKU: 9099510
Price: 1059.00 EUR
Availability: OutOfStock

Article number 9099510

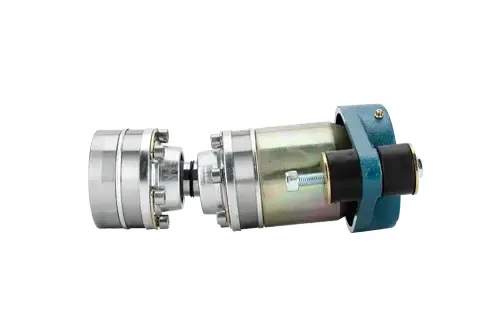

Hydradrive Type Hd-115l Cv-Drive Shaft System Set, With Thrust Bearing, Cv-Shaft And Adapter Flange - 9099510 3 - 9099510

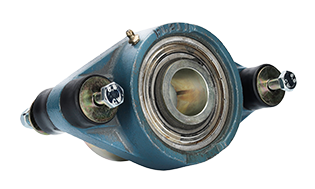

Hydradrive Type Hd-115l Cv-Drive Shaft System Set, With Thrust Bearing, Cv-Shaft And Adapter Flange - 9099510 1 - 9099510

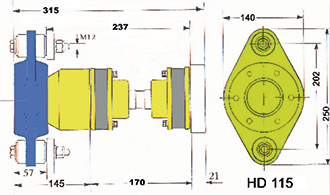

Hydradrive Type Hd-115l Cv-Drive Shaft System Set, With Thrust Bearing, Cv-Shaft And Adapter Flange - 9099510 2 - 9099510

This package contains		Stock	Amount
	Hydradrive CV-Joint Shaft Model HD-115l, L=170mm 9099710		1
	Hydradrive Self-Aligning Thrust Bearing complete set, Ø35mm For Model HD-115 10000045		1
	Hydradrive Adapter 5", Centre Ø63,5mm, Pitch Ø108mm, 4x Ø11,2mm, For Model Hd-115l 9099741	2	1

Stock 0

€ 1.059,00

Price (ex VAT)

Min. sales quantity: 1
Sales per: 1

Description

Hydradrive model HD-115L CV-shaft Set c/w thrust bearing + gearbox adapter *

Files

Drawings

pdf-allpa-aflex-montage instruction-type HD

Properties

General

Articlenumber

9099510

Inboard

Suitable for engine powers	up ± 90pk
Max. propeller thrust	12500N
Max. shaft torque	800Nm
Max. shaft rpm	5.000 rpm
Length CV-shaft	170 ± 25mm
Propeller shaft diameters	35, 40 and 45mm
Full planing vessels	up to 135hp
