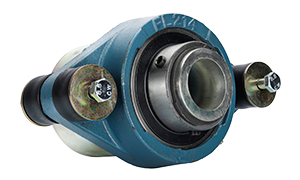

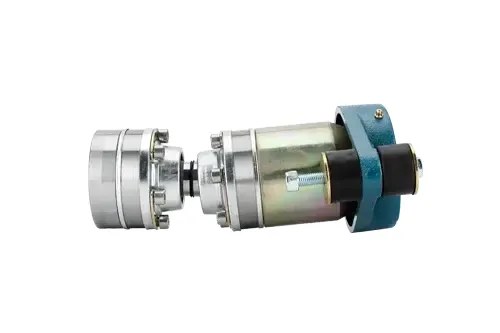

Hydradrive Type Hd-125 Cv-Drive Shaft System Set, With Thrust Bearing, Cv-Shaft And Adapter Flange
Article number
9099515
Description
Hydradrive model HD125 CV-shaft Set c/w thrust bearing + gearbox adapter *
Files
Properties
General
| Articlenumber | 9099515 |
Inboard
| Suitable for engine powers | up ± 170pk |
| Max. propeller thrust | 18000N |
| Max. shaft torque | 1100Nm |
| Max. shaft rpm | 4.000 rpm |
| Length CV-shaft | 210 ± 40mm |
| Propeller shaft diameters | 35, 40, 45 and 50mm |
| Full planing vessels | up to 220hp |
Related products
| Product | Properties | Price (ex VAT) | ||
|---|---|---|---|---|
|
9099500
|
Articlenumber
9099500
Suitable for engine powers
up ± 50pk
Max. propeller thrust
4300N
Max. shaft torque
485Nm
Max. shaft rpm
5.000 rpm
Length CV-shaft
155 ± 25mm
Propeller shaft diameters
20, 25, 30mm and 1“, 1-1/4“
|
€ 817,00
Stock 0
|
|
|
9099505
|
Articlenumber
9099505
Suitable for engine powers
up ± 80pk
Max. propeller thrust
10500N
Max. shaft torque
690Nm
Max. shaft rpm
5.000 rpm
Length CV-shaft
155 ± 25mm
Propeller shaft diameters
30, 35 and 40mm
|
€ 885,00
Stock 0
|
|
|
9099510
|
Articlenumber
9099510
Suitable for engine powers
up ± 90pk
Max. propeller thrust
12500N
Max. shaft torque
800Nm
Max. shaft rpm
5.000 rpm
Length CV-shaft
170 ± 25mm
Propeller shaft diameters
35, 40 and 45mm
Full planing vessels
up to 135hp
|
€ 1.059,00
Stock 0
|
|
|
9099520
|
Articlenumber
9099520
Suitable for engine powers
up ± 250pk
Max. propeller thrust
25000N
Max. shaft torque
1800Nm
Max. shaft rpm
4.000 rpm
Length CV-shaft
240 ± 45mm
Propeller shaft diameters
40, 45, 50, 55 and 60mm
Full planing vessels
up to 320hp
|
€ 3.343,00
Stock 0
|
