Hydradrive Type Hd-108 Cv-Drive Shaft System Set, With Thrust Bearing, Cv-Shaft And Adapter Flange

Name: Hydradrive Type Hd-108 Cv-Drive Shaft System Set, With Thrust Bearing, Cv-Shaft And Adapter Flange
Brand: Hydradrive
SKU: 9099500
Price: 817.00 EUR
Availability: OutOfStock

Article number 9099500

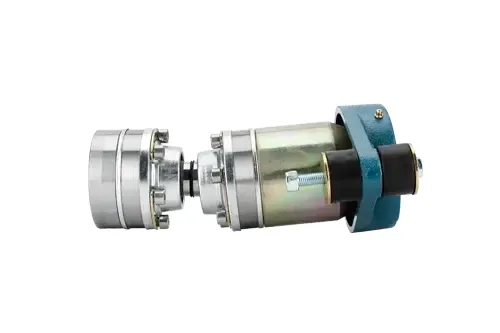

Hydradrive Type Hd-108 Cv-Drive Shaft System Set, With Thrust Bearing, Cv-Shaft And Adapter Flange - 9099500 3 - 9099500

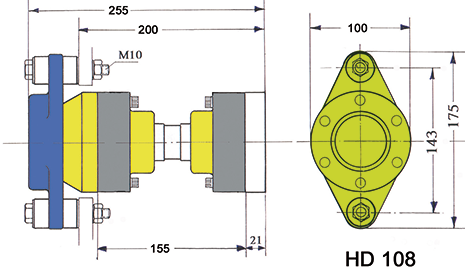

Hydradrive Type Hd-108 Cv-Drive Shaft System Set, With Thrust Bearing, Cv-Shaft And Adapter Flange - 9099500 2 - 9099500

This package contains		Stock	Amount
	Hydradrive Adapter 4", Centre Ø63,5mm, Pitch Ø82,5mm, 4x Ø10mm, For Model Hd-108/113 9099740	5	1
	Hydradrive Cv-Joint Shaft Model Hd-108/113, L=155mm 9099700		1

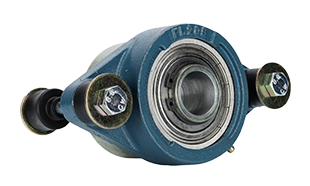

	Hydradrive Self-Aligning Thrust Bearing complete set, Ø25mm For Model HD-108 10000029	2	1

Stock 0

€ 817,00

Price (ex VAT)

Min. sales quantity: 1
Sales per: 1

Description

Complete constant velocity (CV) drive shaft kit designed to drastically reduce vibrations and noise in the propeller shaft assembly. Combining a self-aligning thrust bearing, a flexible CV joint, and an adapter, this system absorbs propeller thrust and compensates for engine misalignment. Ideal for ensuring a smooth, quiet, and low-maintenance power transmission in inboard engines.

Properties

General

Articlenumber

9099500

Inboard

Suitable for engine powers	up ± 50pk
Max. propeller thrust	4300N
Max. shaft torque	485Nm
Max. shaft rpm	5.000 rpm
Length CV-shaft	155 ± 25mm
Propeller shaft diameters	20, 25, 30mm and 1“, 1-1/4“
