Windlass Project X1 Alu 6mm/12v/500w Din766

Name: Windlass Project X1 Alu 6mm/12v/500w Din766
Brand: Lofrans
SKU: 72207
Price: 738.57 EUR
Availability: OutOfStock

Article number 72207

Description

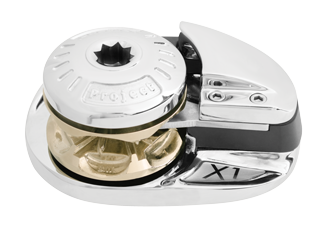

The Lofrans 'Project X1' is a vertical aluminum anchor windlass designed for boats ranging from 6 to 9 meters (20-30') in length. This compact unit is equipped with a powerful 12V / 500W motor and is built for a 6 mm anchor chain. This specific version comes without a warping drum (low profile), ensuring a clean and flush look on the foredeck.

Properties

General

Articlenumber

72207

Extern

Material	Aluminum
For	For boats 20-30' (6-9m)
Motor	500W
Power Supply	12V
Size	6mm
Drum	Without

Related products

Product	Properties	Price (ex VAT)
Lofrans Windlasses Windlass Vertical, Model 'Project X1', 6mm, 12v, 500w, Without Drum 72206	Articlenumber 72206 Material Bronze-chromed EAN number 8719182119746 For For boats 20-30' (6-9m) Motor 500W Power Supply 12V Max. Linear Load 630kg Max. Lift Load 345kg Lift Working Load 95kg Amps Work Load 60A Line Speed 23m/min Max. Line Speed 26m/min Control box Included Size 6mm Conform ISO 4565 / DIN 766 Drum Without Weight with drum 12kg Dimension A 130mm Dimension B 10-30mm Dimension C 111mm Dimension D Ø60mm Dimension E 84mm Dimension F 183mm Dimension G 55mm Dimension H 225mm Dimension I 127mm Dimension J Ø82mm Dimension L 85mm More Less	€ 814,96 Stock 0
Lofrans Windlasses Windlass Vertical, Model 'Project X1', 8mm, 12v, 500w, Without Drum 72228	Articlenumber 72228 EAN number 8719182119746 For For boats 20-30' (6-9m) Motor 500W Power Supply 12V Max. Linear Load 630kg Max. Lift Load 345kg Lift Working Load 95kg Amps Work Load 60A Line Speed 23m/min Max. Line Speed 26m/min Control box Included Size 6mm Conform ISO 4565 / DIN 766 Drum Without Weight with drum 12kg Dimension A 130mm Dimension B 10-30mm Dimension C 111mm Dimension D Ø60mm Dimension E 84mm Dimension F 183mm Dimension G 55mm Dimension H 225mm Dimension I 127mm Dimension J Ø82mm Dimension L 85mm More Less	€ 841,64 Stock 0
Lofrans Windlasses Windlass Vertical, Model 'Project X1', 6mm, 12v, 800w, Without Drum 72256	Articlenumber 72256 EAN number 8719182119746 For For boats 20-30' (6-9m) Motor 800W Power Supply 12V Max. Linear Load 700kg Max. Lift Load 380kg Lift Working Load 100kg Amps Work Load 110A Line Speed 25m/min Max. Line Speed 28m/min Control box Included Size 6mm Conform ISO 4565 / DIN 766 Drum Without Weight with drum 14kg Dimension A 130mm Dimension B 10-30mm Dimension C 111mm Dimension D Ø60mm Dimension E 84mm Dimension F 183mm Dimension G 55mm Dimension H 229mm Dimension I 127mm Dimension J Ø95mm Dimension L 92mm More Less	€ 962,27 Stock 1
Lofrans Windlasses Windlass Vertical, Model 'Project X1', 8mm, 12v, 800w, Without Drum 72278	Articlenumber 72278 EAN number 8719182119746 For For boats 20-30' (6-9m) Motor 800W Power Supply 12V Max. Linear Load 700kg Max. Lift Load 380kg Lift Working Load 100kg Amps Work Load 110A Line Speed 25m/min Max. Line Speed 28m/min Control box Included Size 6mm Conform ISO 4565 / DIN 766 Drum Without Weight with drum 14kg Dimension A 130mm Dimension B 10-30mm Dimension C 111mm Dimension D Ø60mm Dimension E 84mm Dimension F 183mm Dimension G 55mm Dimension H 229mm Dimension I 127mm Dimension J Ø95mm Dimension L 92mm More Less	€ 962,27 Stock 0
Lofrans Windlasses Windlass Vertical, Model 'Project X1', 6mm, 12v, 500w, With Drum 72216	Articlenumber 72216 EAN number 8719182119746 For For boats 20-30' (6-9m) Motor 500W Power Supply 12V Max. Linear Load 630kg Max. Lift Load 345kg Lift Working Load 95kg Amps Work Load 60A Line Speed 23m/min Max. Line Speed 26m/min Control box Included Size 8mm Conform ISO 4565 / DIN 766 Drum With Weight with drum 12kg Dimension A 130mm Dimension B 10-30mm Dimension C 111mm Dimension D Ø60mm Dimension E 84mm Dimension F 183mm Dimension G 55mm Dimension H 225mm Dimension I 127mm Dimension J Ø82mm Dimension L 85mm More Less	€ 940,64 Stock 0
Lofrans Windlasses Windlass Vertical, Model 'Project X1', 8mm, 12v, 500w, With Drum 72238	Articlenumber 72238 EAN number 8719182119746 For For boats 20-30' (6-9m) Motor 500W Power Supply 12V Max. Linear Load 630kg Max. Lift Load 345kg Lift Working Load 95kg Amps Work Load 60A Line Speed 23m/min Max. Line Speed 26m/min Control box Included Size 8mm Conform ISO 4565 / DIN 766 Drum With Weight with drum 12kg Dimension A 130mm Dimension B 10-30mm Dimension C 111mm Dimension D Ø60mm Dimension E 84mm Dimension F 183mm Dimension G 55mm Dimension H 225mm Dimension I 127mm Dimension J Ø82mm Dimension L 85mm More Less	€ 940,64 Stock 0
Lofrans Windlasses Windlass Vertical, Model 'Project X1', 6mm, 12v, 800w, With Drum 72266	Articlenumber 72266 EAN number 8719182119746 For For boats 20-30' (6-9m) Motor 800W Power Supply 12V Max. Linear Load 700kg Max. Lift Load 380kg Lift Working Load 100kg Amps Work Load 110A Line Speed 25m/min Max. Line Speed 28m/min Control box Included Size 8mm Conform ISO 4565 / DIN 766 Drum With Weight with drum 14kg Dimension A 130mm Dimension B 10-30mm Dimension C 111mm Dimension D Ø60mm Dimension E 84mm Dimension F 183mm Dimension G 55mm Dimension H 229mm Dimension I 127mm Dimension J Ø95mm Dimension L 92mm More Less	€ 957,66 Stock 0
Lofrans Windlasses Windlass Vertical, Model 'Project X1', 8mm, 12v, 800w, With Drum 72288	Articlenumber 72288 EAN number 8719182119746 For For boats 20-30' (6-9m) Motor 800W Power Supply 12V Max. Linear Load 700kg Max. Lift Load 380kg Lift Working Load 100kg Amps Work Load 110A Line Speed 25m/min Max. Line Speed 28m/min Control box Included Size 8mm Conform ISO 4565 / DIN 766 Drum With Weight with drum 14kg Dimension A 130mm Dimension B 10-30mm Dimension C 111mm Dimension D Ø60mm Dimension E 84mm Dimension F 183mm Dimension G 55mm Dimension H 229mm Dimension I 127mm Dimension J Ø95mm Dimension L 92mm More Less	€ 957,66 Stock 1
