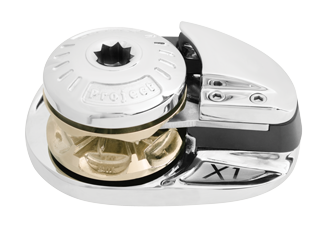

Lofrans Windlasses Windlass Vertical, Model 'Project X1', 6mm, 12v, 500w, Without Drum

Name: Lofrans Windlasses Windlass Vertical, Model 'Project X1', 6mm, 12v, 500w, Without Drum
Brand: Lofrans
SKU: 72206
Price: 814.96 EUR
Availability: OutOfStock

Article number 72206

Drawings

pdf-allpa-lofrans-x1

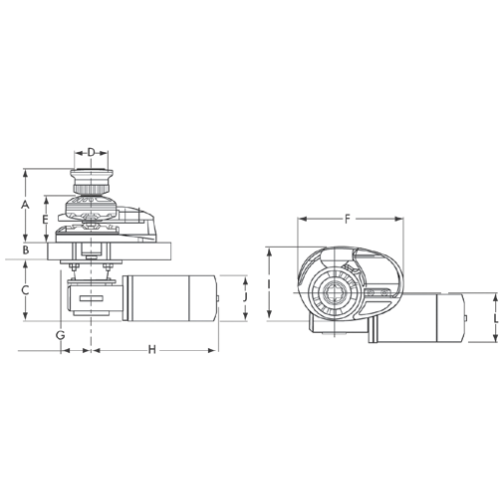

pdf-allpa-lofrans-x1-dimension

Properties

General

Articlenumber	72206
EAN number	8719182119746

Extern

Material	Bronze-chromed
For	For boats 20-30' (6-9m)
Motor	500W
Power Supply	12V
Max. Linear Load	630kg
Max. Lift Load	345kg
Lift Working Load	95kg
Amps Work Load	60A
Line Speed	23m/min
Max. Line Speed	26m/min
Control box	Included
Size	6mm
Conform	ISO 4565 / DIN 766
Drum	Without
Weight with drum	12kg
Dimension A	130mm
Dimension B	10-30mm
Dimension C	111mm
Dimension D	Ø60mm
Dimension E	84mm
Dimension F	183mm
Dimension G	55mm
Dimension H	225mm
Dimension I	127mm
Dimension J	Ø82mm
Dimension L	85mm
