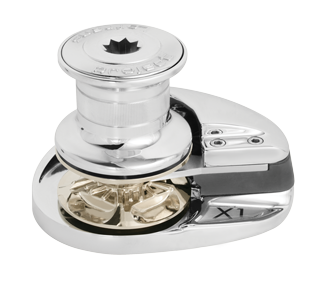

Lofrans Windlasses Windlass Vertical, Model 'Project X1', 8mm, 12v, 500w, With Drum

Name: Lofrans Windlasses Windlass Vertical, Model 'Project X1', 8mm, 12v, 500w, With Drum
Brand: Lofrans
SKU: 72238
Price: 940.64 EUR
Availability: OutOfStock

Article number 72238

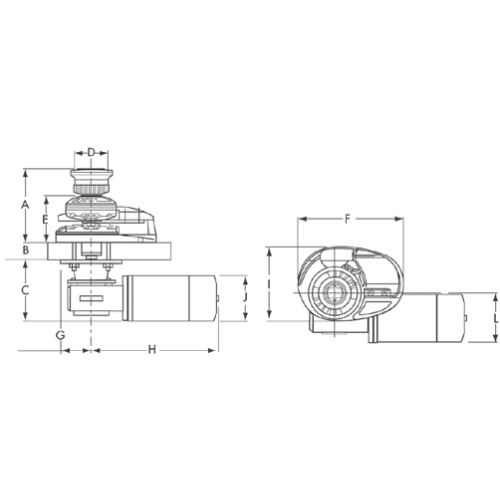

Drawings

pdf-allpa-lofrans-x1

pdf-allpa-lofrans-x1-dimension

Properties

General

Articlenumber	72238
EAN number	8719182119746

Extern

For	For boats 20-30' (6-9m)
Motor	500W
Power Supply	12V
Max. Linear Load	630kg
Max. Lift Load	345kg
Lift Working Load	95kg
Amps Work Load	60A
Line Speed	23m/min
Max. Line Speed	26m/min
Control box	Included
Size	8mm
Conform	ISO 4565 / DIN 766
Drum	With
Weight with drum	12kg
Dimension A	130mm
Dimension B	10-30mm
Dimension C	111mm
Dimension D	Ø60mm
Dimension E	84mm
Dimension F	183mm
Dimension G	55mm
Dimension H	225mm
Dimension I	127mm
Dimension J	Ø82mm
Dimension L	85mm
