Centaflex koppeling, M-160 2.3, max. 500Nm (plezier), D=65mm, Tk=100mm, Z=4x90°, M=M10
Article number
9088002YANMR23
Description
Centaflex Coupling, M-160 2.3, max. 500Nm (pleasure), D=65mm, Tk=100mm, Z=4x90º, M=M10
Files

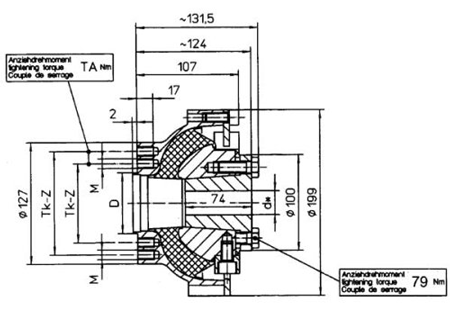

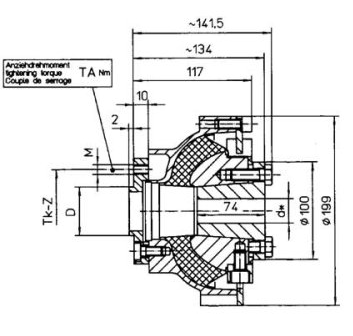

Drawings
| pdf-allpa-centaflex-m160-1 |
Properties
General
| Articlenumber | 9088002YANMR23 |
| EAN number | 8719182663898 |
Inboard
| Model | M-160-K2.3* |
| Max. rpm | 3500 |
| Commercial | 350 |
| Pleasure | 500 |
| Max. allow angular misalignment | 2° |
| Size D (mm) | 65 |
| Size M (mm) | M10 |
| Size Tk (mm) | 100 |
| Size Z (mm) | 4x90° |
| Geartype (TKN > Tgear output) | Kanzaki KC180, Yanmar 4JH-TE, 4JH3-TE |
| TA (Nm) | 45 |
Related products
| Product | Properties | Price (ex VAT) | ||
|---|---|---|---|---|
|
9088002
|
Articlenumber
9088002
Model
M-160-K1.0-*
Max. rpm
3500
Commercial
350
Pleasure
500
Max. allow angular misalignment
2°
Size D (mm)
63,5
Size M (mm)
M10
Size Tk (mm)
108+82,5
Size Z (mm)
4x90°
Geartype (TKN > Tgear output)
4”-5"-Flange, HBW, SOM, Velvet, ZF-BW7-A+C, BW12, Technodrive
TA (Nm)
45
EAN number
8719182663898
|
€ 497,74
Stock 73
|
|
|
9088002/11
|
Articlenumber
9088002/11
Model
M-160-K1.1-*
Max. rpm
3500
Commercial
350
Pleasure
500
Max. allow angular misalignment
2°
Size D (mm)
66,65
Size M (mm)
M10
Size Tk (mm)
82,5
Size Z (mm)
4x90°
Geartype (TKN > Tgear output)
Paragon ES40. P13L (Gear flange to be bored to Ø10,5)
TA (Nm)
45
EAN number
8719182663898
|
€ 589,70
Stock 0
|
|
|
9088002/32
|
Articlenumber
9088002/32
Model
M-160-K3.2-*
Max. rpm
3500
Commercial
350
Pleasure
500
Max. allow angular misalignment
2°
Size D (mm)
60
Size M (mm)
M10
Size Tk (mm)
80
Size Z (mm)
4x90°
Geartype (TKN > Tgear output)
Volvo MS2 (9088002 + 9088090)
TA (Nm)
45
EAN number
8719182663898
|
€ 589,00
Stock 3
|
|
|
9088002/33
|
Articlenumber
9088002/33
Model
M-160-K3.3-*
Max. rpm
3500
Commercial
350
Pleasure
500
Max. allow angular misalignment
2°
Size D (mm)
47
Size M (mm)
M8
Size Tk (mm)
74,5
Size Z (mm)
4x90°
Geartype (TKN > Tgear output)
ZF-BW7-Bukh
TA (Nm)
23
EAN number
8719182663898
|
€ 688,06
Stock 0
|
|
|
9088002/35
|
Articlenumber
9088002/35
Model
M-160-K3.5-*
Max. rpm
3500
Commercial
350
Pleasure
500
Max. allow angular misalignment
2°
Size D (mm)
45
Size M (mm)
M10
Size Tk (mm)
85
Size Z (mm)
4x90°
Geartype (TKN > Tgear output)
Farymann 95W (with adaptor So-3-03-028 also for Farym. 15W, 18W, 32W)
TA (Nm)
45
EAN number
8719182663898
|
€ 639,00
Stock 0
|
|
|
9088002YANMAR
|
Articlenumber
9088002YANMAR
Model
M-160-K2.2-*
Max. rpm
3500
Commercial
350
Pleasure
500
Max. allow angular misalignment
2°
Size D (mm)
50
Size M (mm)
M10
Size Tk (mm)
78
Size Z (mm)
4x90°
Geartype (TKN > Tgear output)
Kanzaki KC30, KC100,Yanmar 3GM30, 3HM
TA (Nm)
45
EAN number
8719182663898
|
€ 647,80
Stock 0
|
