Centaflex Coupling, M-160 3.2, Max. 500nm (Pleasure), D=60mm, Tk=80mm, Z=4x90°, M=M10

Name: Centaflex Coupling, M-160 3.2, Max. 500nm (Pleasure), D=60mm, Tk=80mm, Z=4x90°, M=M10
Brand: Centaflex
SKU: 9088002/32
Price: 589.00 EUR
Availability: InStock

Article number 9088002/32

Centaflex Coupling, M-160 3.2, Max. 500nm (Pleasure), D=60mm, Tk=80mm, Z=4x90°, M=M10 - 088002 32 72dpi - 9088002/32

Centaflex Coupling, M-160 3.2, Max. 500nm (Pleasure), D=60mm, Tk=80mm, Z=4x90°, M=M10 - 088002 32 01 72dpi - 9088002/32

Centaflex Coupling, M-160 3.2, Max. 500nm (Pleasure), D=60mm, Tk=80mm, Z=4x90°, M=M10 - 088002 32 02 72dpi - 9088002/32

This package contains		Stock	Amount
	Centaflex Coupling, M-160 1.0, Max. 500nm (Pleasure), D=63,5mm, Tk=82,5 & 108mm, Z=4x90°, M=M10 9088002	73	1
	Adapter Flange M-127/M-160 For Volvo Ms-2 9088090	3	1

Stock 3

€ 589,00

Price (ex VAT)

Min. sales quantity: 1
Sales per: 1

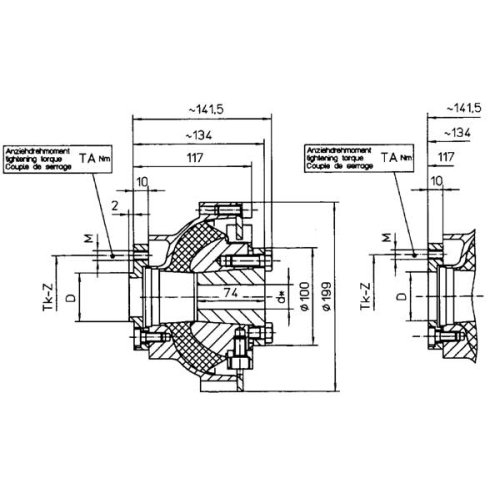

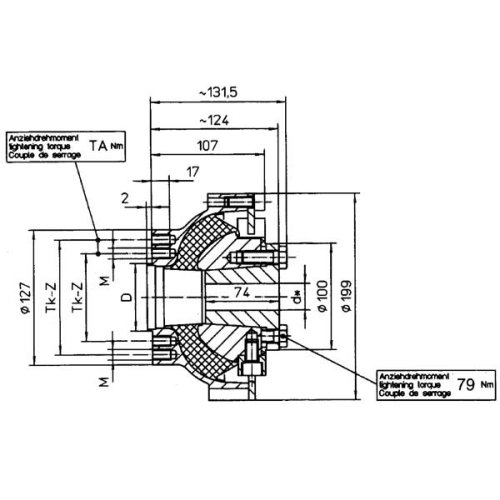

Drawings

pdf-allpa-centaflex- M160

Properties

General

Articlenumber	9088002/32
EAN number	8719182663898

Inboard

Model	M-160-K3.2-*
Max. rpm	3500
Commercial	350
Pleasure	500
Max. allow angular misalignment	2°
Size D (mm)	60
Size M (mm)	M10
Size Tk (mm)	80
Size Z (mm)	4x90°
Geartype (TKN > Tgear output)	Volvo MS2 (9088002 + 9088090)
TA (Nm)	45

Related products

Product	Properties	Price (ex VAT)
Centaflex Coupling, M-160 1.0, Max. 500nm (Pleasure), D=63,5mm, Tk=82,5 & 108mm, Z=4x90°, M=M10 9088002	Articlenumber 9088002 Model M-160-K1.0-* Max. rpm 3500 Commercial 350 Pleasure 500 Max. allow angular misalignment 2° Size D (mm) 63,5 Size M (mm) M10 Size Tk (mm) 108+82,5 Size Z (mm) 4x90° Geartype (TKN > Tgear output) 4”-5"-Flange, HBW, SOM, Velvet, ZF-BW7-A+C, BW12, Technodrive TA (Nm) 45 EAN number 8719182663898 More Less	€ 497,74 Stock 73
Centaflex Coupling, M-160 1.1, Max. 500nm (Pleasure), D=66,65mm, Tk=82,5mm, Z=4x90°, M=M10 9088002/11	Articlenumber 9088002/11 Model M-160-K1.1-* Max. rpm 3500 Commercial 350 Pleasure 500 Max. allow angular misalignment 2° Size D (mm) 66,65 Size M (mm) M10 Size Tk (mm) 82,5 Size Z (mm) 4x90° Geartype (TKN > Tgear output) Paragon ES40. P13L (Gear flange to be bored to Ø10,5) TA (Nm) 45 EAN number 8719182663898 More Less	€ 589,70 Stock 0
Centaflex Coupling, M-160 3.3, Max. 500nm (Pleasure), D=47mm, Tk=74,5mm, Z=4x90°, M=M8 9088002/33	Articlenumber 9088002/33 Model M-160-K3.3-* Max. rpm 3500 Commercial 350 Pleasure 500 Max. allow angular misalignment 2° Size D (mm) 47 Size M (mm) M8 Size Tk (mm) 74,5 Size Z (mm) 4x90° Geartype (TKN > Tgear output) ZF-BW7-Bukh TA (Nm) 23 EAN number 8719182663898 More Less	€ 688,06 Stock 0
Centaflex Coupling, M-160 3.5, Max. 500nm (Pleasure), D=45mm, Tk=85mm, Z=4x90°, M=M8 9088002/35	Articlenumber 9088002/35 Model M-160-K3.5-* Max. rpm 3500 Commercial 350 Pleasure 500 Max. allow angular misalignment 2° Size D (mm) 45 Size M (mm) M10 Size Tk (mm) 85 Size Z (mm) 4x90° Geartype (TKN > Tgear output) Farymann 95W (with adaptor So-3-03-028 also for Farym. 15W, 18W, 32W) TA (Nm) 45 EAN number 8719182663898 More Less	€ 639,00 Stock 0
Centaflex Coupling, M-160 2.2, Max. 500nm (Pleasure), D=50mm, Tk=78mm, Z=4x90°, M=M10 9088002YANMAR	Articlenumber 9088002YANMAR Model M-160-K2.2-* Max. rpm 3500 Commercial 350 Pleasure 500 Max. allow angular misalignment 2° Size D (mm) 50 Size M (mm) M10 Size Tk (mm) 78 Size Z (mm) 4x90° Geartype (TKN > Tgear output) Kanzaki KC30, KC100,Yanmar 3GM30, 3HM TA (Nm) 45 EAN number 8719182663898 More Less	€ 647,80 Stock 0
Centaflex koppeling, M-160 2.3, max. 500Nm (plezier), D=65mm, Tk=100mm, Z=4x90°, M=M10 9088002YANMR23	Articlenumber 9088002YANMR23 Model M-160-K2.3* Max. rpm 3500 Commercial 350 Pleasure 500 Max. allow angular misalignment 2° Size D (mm) 65 Size M (mm) M10 Size Tk (mm) 100 Size Z (mm) 4x90° Geartype (TKN > Tgear output) Kanzaki KC180, Yanmar 4JH-TE, 4JH3-TE TA (Nm) 45 EAN number 8719182663898 More Less	€ 584,00 Stock 40
