Solé Marine Diesel Engine Sdz 205 Turbo With Technodrive Gearbox Tm265, R=2.09:1

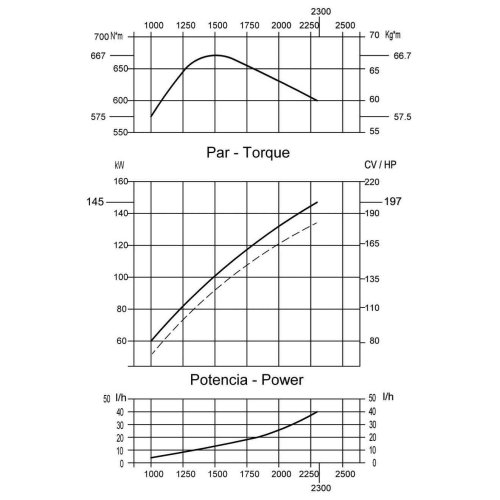

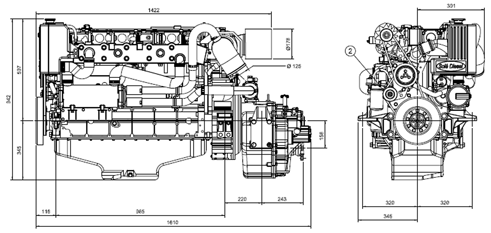

The Solé SDZ 205 is a turbocharged and intercooled 4-stroke inboard marine diesel engine based on a Deutz engine block. This six-cylinder in-line engine delivers a maximum output of 197 hp (145 kW) according to the DIN6270B standard at 2,300 rpm. The engine features a displacement of 7,146 cc, a bore and stroke of 108 x 130 mm, a compression ratio of 17.6:1, and a maximum torque of 667 Nm at 1,500 rpm. The combustion system utilizes direct mechanical injection. The cooling configuration is a fresh water cooling system with a heat exchanger, featuring a water-cooled exhaust elbow and a water-cooled turbocharger. The engine allows for a maximum installation angle of 9° (+3° discontinuous).

The electrical system is double-pole, operating at 24V, and includes a 4 kW starter motor and a 55A alternator. Connection diameters are 125 mm for the exhaust, 42 mm for the cooling water inlet, 12 mm for the fuel inlet, and 12 mm for the fuel return. This specific model (article number 9022272, EAN 8719182091073) has a base weight of 788 kg (measured as a reference weight including TM170) and comes equipped with a hydraulic Technodrive TM265 gearbox featuring a reduction ratio of 2.09:1. The scope of delivery includes exclusively the individual engine with the specified gearbox.
