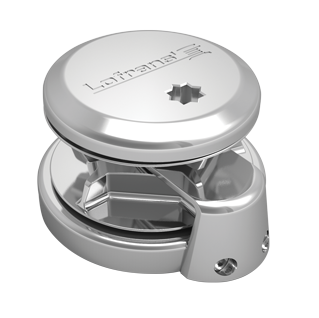

Lofrans Windlasses Windlass Vertical, Model 'Sx3', 10mm, 1500w/12v, Without Drum
Article number
70730
Description
"Lofrans windlasses Windlass vertical, model "" SX3"", 10mm, 1500W/12V, without drum"
Properties
General
| Articlenumber | 70730 |
Extern
| For | For boats 50-60' (15-18m) |
| Motor | 1500W |
| Power Supply | 12V |
| Max. Linear Load | 1000kg |
| Lift Working Load | 150kg |
| Amps Work Load | 135A |
| Line Speed | 20m/min |
| Max. Line Speed | 40m/min |
| Weight | 19kg |
| Control box | Included |
| Size | 10mm |
| Conform | ISO 4565 |
| Drum | Without |
| Weight with drum | 20kg |
Related products
| Product | Properties | Price (ex VAT) | ||
|---|---|---|---|---|
|
70735
|
Articlenumber
70735
For
For boats 50-60' (15-18m)
Motor
1700W
Power Supply
24V
Max. Linear Load
1500kg
Amps Work Load
75A
Line Speed
19m/min
Max. Line Speed
40m/min
Weight
24kg
Control box
Included
Size
12mm
Conform
ISO 4565
Drum
Without
Weight with drum
25kg
|
€ 2.142,17
Stock 0
|
|
|
70737
|
Articlenumber
70737
For
For boats 50-60' (15-18m)
Motor
1700W
Power Supply
24V
Max. Linear Load
1500kg
Amps Work Load
75A
Line Speed
19m/min
Max. Line Speed
40m/min
Weight
24kg
Control box
Included
Size
10mm
Conform
DIN 766
Drum
With
Weight with drum
25kg
|
€ 2.227,23
Stock 0
|
|
|
70738
|
Articlenumber
70738
For
For boats 50-60' (15-18m)
Motor
1700W
Power Supply
24V
Max. Linear Load
1500kg
Amps Work Load
75A
Line Speed
19m/min
Max. Line Speed
40m/min
Weight
24kg
Control box
Included
Size
12mm
Conform
ISO 4565
Drum
With
Weight with drum
25kg
|
€ 2.227,23
Stock 0
|
