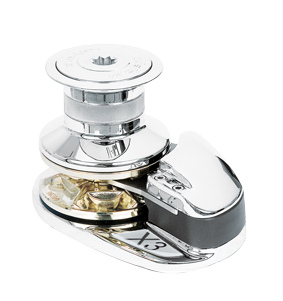

Lofrans Windlasses Windlass Vertical, Model 'Project X3', 12mm, 24v, 1700w, With Drum

Name: Lofrans Windlasses Windlass Vertical, Model 'Project X3', 12mm, 24v, 1700w, With Drum
Brand: Lofrans
SKU: 72433
Price: 2438.05 EUR
Availability: OutOfStock

Article number 72433

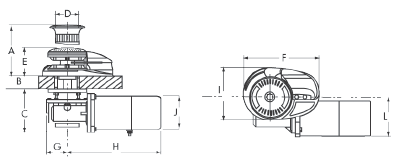

Drawings

pdf-allpa-lofrans-x3

pdf-allpa-lofrans-x3-dimension

Properties

General

Articlenumber	72433
EAN number	8719182121244

Extern

For	For boats 50-60' (15-18m)
Motor	1700W
Power Supply	24V
Max. Linear Load	1695kg
Max. Lift Load	850kg
Lift Working Load	215kg
Amps Work Load	68A
Line Speed	15m/min
Max. Line Speed	32m/min
Control box	Included
Size	12mm
Conform	ISO 4565
Drum	With
Weight with drum	38kg
Dimension A	195mm
Dimension B	50-70mm
Dimension C	165mm
Dimension D	Ø92mm
Dimension E	110mm
Dimension F	270mm
Dimension G	80mm
Dimension H	300mm
Dimension I	192mm
Dimension J	Ø126mm
Dimension L	135mm
