Lofrans Windlasses Windlass Horizontal, Model 'Tigres', 10mm, Din766, 24v, 1500w, With Drum
Article number
71040
Description
"Lofrans Windlass, model ""Tigres"" 10mm-DIN766, 24V, 1500W, with drum"
Files
Properties
General
| Articlenumber | 71040 |
| EAN number | 8719182102045 |
Extern
| For | For boats 40-55' (12-15m) |
| Motor | 1500W |
| Power Supply | 24V |
| Max. Linear Load | 1590kg |
| Max. Lift Load | 795kg |
| Lift Working Load | 200kg |
| Amps Work Load | 65A |
| Line Speed | 20m/min |
| Max. Line Speed | 32m/min |
| Weight | 28kg |
| Control box | Included |
| Size | 10mm |
| Conform | DIN 766 |

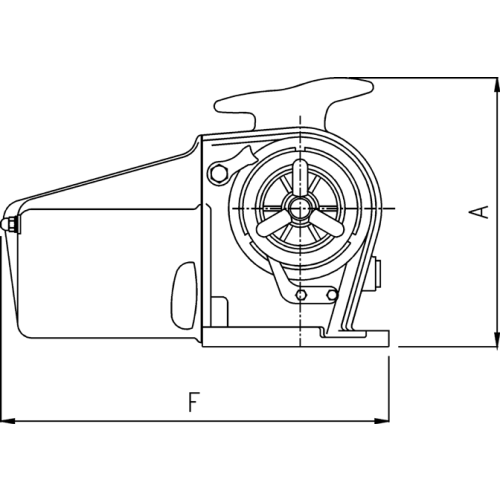

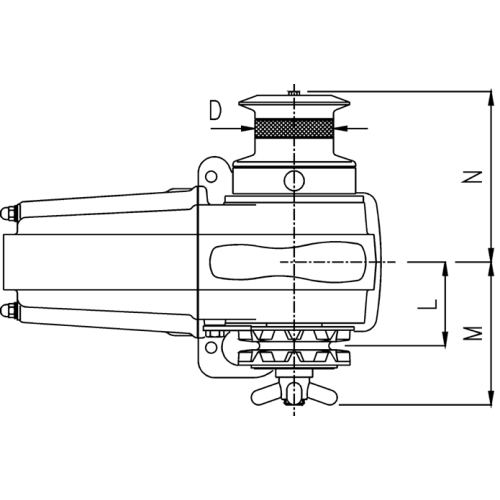

| Dimension A | 290mm |
| Dimension D | Ø85mm |
| Dimension F | 415mm |
| Dimension L | 90mm |
| Dimension M | 155mm |
| Dimension N | 185mm |
