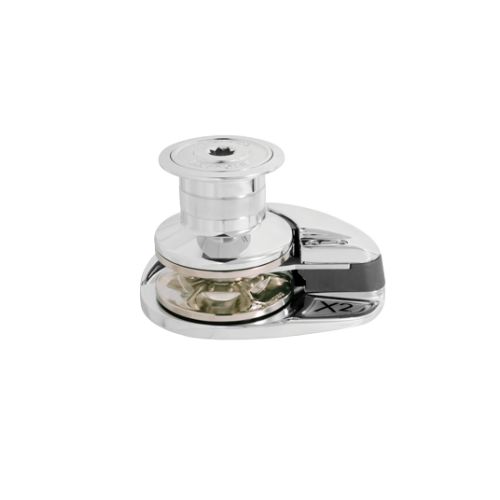

Lofrans Windlass vertical, Model 'Project X2', 10mm/DIN, 12V, 1000W, with drum

Name: Lofrans Windlass vertical, Model 'Project X2', 10mm/DIN, 12V, 1000W, with drum
Brand: Lofrans
SKU: 72333
Price: 1369.80 EUR
Availability: OutOfStock

Article number 72333

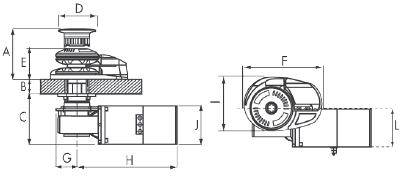

Drawings

pdf-allpa-lofrans-x2

pdf-allpa-lofrans-x2-dimension

Properties

General

Articlenumber	72333
EAN number	8719182120346

Extern

For	For boats 25-45' (7,5-13m)
Motor	1000W
Power Supply	12V
Max. Linear Load	1000kg
Max. Lift Load	500kg
Lift Working Load	150kg
Amps Work Load	117A
Line Speed	25m/min
Max. Line Speed	45m/min
Control box	Included
Size	10mm
Conform	DIN 766
Drum	With
Weight with drum	24kg
Dimension A	153mm
Dimension B	25-40mm
Dimension C	150mm
Dimension D	Ø76mm
Dimension E	94mm
Dimension F	232mm
Dimension G	62mm
Dimension H	250mm
Dimension I	162mm
Dimension J	Ø114mm
Dimension L	138mm
