Centaflex Coupling, M-127 3.3, Max. 250nm (Pleasure), D=47mm, Tk=74,5mm, Z=4x90°, M=M8
Article number
9088001BUKH
Description
Centaflex Coupling, M-127 3.3, max. 250Nm (pleasure), D=47mm, Tk=74,5mm, Z=4x90º, M=M8
Files

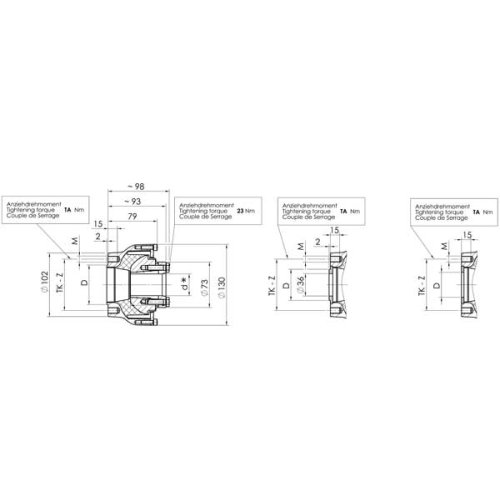

Drawings
| pdf-allpa-centaflex- M127 |
Properties
General
| Articlenumber | 9088001BUKH |
| EAN number | 8719182662754 |
Inboard
| Model | M-127-K3.3-* |
| Max. rpm | 4500 |
| Commercial | 175 |
| Pleasure | 250 |
| Max. allow angular misalignment | 2° |
| Size D (mm) | 47 |
| Size M (mm) | M8 |
| Size Tk (mm) | 74,5 |
| Size Z (mm) | 4x90° |
| Geartype (TKN > Tgear output) | ZF-BW7-Bukh |
| TA (Nm) | 34 |
Related products
| Product | Properties | Price (ex VAT) | ||
|---|---|---|---|---|
|
9088001
|
Articlenumber
9088001
Model
M-127-K1.4-*
Max. rpm
4500
Commercial
175
Pleasure
250
Max. allow angular misalignment
2°
Size D (mm)
63,5
Size M (mm)
M10
Size Tk (mm)
82,5
Size Z (mm)
4x90°
Geartype (TKN > Tgear output)
4''-Flange, HBW, SOM, Velvet, ZF-BW7-A+C, BW12, Technodrive
TA (Nm)
45
EAN number
8719182662754
|
€ 305,24
Stock 204
|
|
|
9088001/11
|
Articlenumber
9088001/11
Model
M-127-K1.1-*
Max. rpm
4500
Commercial
175
Pleasure
250
Max. allow angular misalignment
2°
Size D (mm)
66,65
Size M (mm)
M10
Size Tk (mm)
82,5
Size Z (mm)
4x90°
Geartype (TKN > Tgear output)
Paragon ES40 (Gear flange to be bored to Ø10,5)
TA (Nm)
45
EAN number
8719182662754
|
€ 466,59
Stock 0
|
|
|
9088001/310
|
Articlenumber
9088001/310
Model
M-127-K3.10-*
Max. rpm
4500
Commercial
175
Pleasure
250
Max. allow angular misalignment
2°
Size D (mm)
38,1
Size M (mm)
M8
Size Tk (mm)
66,7
Size Z (mm)
3x120°
Geartype (TKN > Tgear output)
Watermota
TA (Nm)
23
EAN number
8719182662754
|
€ 505,30
Stock 0
|
|
|
9088001/32
|
Articlenumber
9088001/32
Model
M-127-K3.2-*
Max. rpm
4500
Commercial
175
Pleasure
250
Max. allow angular misalignment
2°
Size D (mm)
60
Size M (mm)
M10
Size Tk (mm)
80
Size Z (mm)
4x90°
Geartype (TKN > Tgear output)
Volvo MS2, MS10, MS15, MS25 (9088001 + 9088090)
TA (Nm)
45
EAN number
8719182662754
|
€ 399,00
Stock 3
|
|
|
9088001/34
|
Articlenumber
9088001/34
Model
M-127-K3.4-*
Max. rpm
4500
Commercial
175
Pleasure
250
Max. allow angular misalignment
2°
Size D (mm)
45
Size M (mm)
M10
Size Tk (mm)
75
Size Z (mm)
4x90°
Geartype (TKN > Tgear output)
Farymann 15W, 18W, 32W
TA (Nm)
45
EAN number
8719182662754
|
€ 505,30
Stock 0
|
|
|
9088001/37
|
Articlenumber
9088001/37
Model
M-127-K3.7-*
Max. rpm
4500
Commercial
175
Pleasure
250
Max. allow angular misalignment
2°
Size D (mm)
42
Size M (mm)
M6
Size Tk (mm)
62
Size Z (mm)
6x60°
Geartype (TKN > Tgear output)
ZF-BW6 (with 10mm adaptor, length over all 104mm resp. 99mm)
TA (Nm)
10
EAN number
8719182662754
|
€ 505,30
Stock 0
|
|
|
9088001YANMAR
|
Articlenumber
9088001YANMAR
Model
M-127-K2.2-*
Max. rpm
4500
Commercial
175
Pleasure
250
Max. allow angular misalignment
2°
Size D (mm)
50
Size M (mm)
M10
Size Tk (mm)
78
Size Z (mm)
4x90°
Geartype (TKN > Tgear output)
Kanzaki KC30, KC100, Yanmar 1GM10, 2GM30 (3GM30, 3HM), KM2, KM3P, KM35P
TA (Nm)
45
EAN number
8719182662754
|
€ 391,56
Stock 73
|
